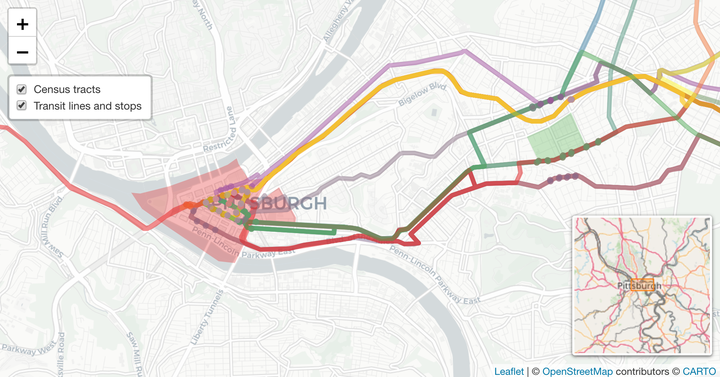

Visualizing Transit Connections Between Pittsburgh Census Tracts

In this post I will use transit line and stop data from the WPRDC to map connections between census tracts. I access the census data via {tidycensus}, which contains information about the commuter connections between census tracts.

library(tidyverse)
library(sf)
library(tigris)
library(janitor)
library(tidycensus)
library(leaflet)

options(tigris_use_cache = TRUE,
        scipen = 999,
        digits = 2)

This code loads the transit line data from the WPRDC. I create the full_route_name_id column and set the coordinate reference system to 4326.

##load transit data
transit_lines <- st_read("data/shapefiles/transit_lines/PAAC_Routes_1909.shp") %>%
  clean_names() %>%
  mutate_at(vars(-all_of(c("geometry"))), as.character) %>%
  rename(route_id = route,
         service_type = type_serv) %>%
  distinct(service_type, route_id, route_name, geometry) %>%
  mutate(full_route_name_id = str_c(route_id, route_name, sep = " ")) %>%
  st_transform(3488)
## Reading layer `PAAC_Routes_1909' from data source `/Users/conortompkins/github_repos/blog_hugo_academic/content/post/visualizing-transit-connections-between-pittsburgh-census-tracts/data/shapefiles/transit_lines/PAAC_Routes_1909.shp' using driver `ESRI Shapefile'
## Simple feature collection with 102 features and 13 fields
## geometry type:  MULTILINESTRING
## dimension:      XY
## bbox:           xmin: 1300000 ymin: 350000 xmax: 1400000 ymax: 490000
## projected CRS:  NAD83(2011) / Pennsylvania South (ftUS)
transit_lines
## Simple feature collection with 102 features and 4 fields
## geometry type:  MULTILINESTRING
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 960000 xmax: 3300000 ymax: 1000000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##    route_id               route_name service_type
## 1        26                Chartiers        Local
## 2        27                Fairywood        Local
## 3        40           Mt. Washington        Local
## 4       61C   McKeesport - Homestead Key Corridor
## 5        65            Squirrel Hill      Express
## 6       71A                   Negley Key Corridor
## 7       71D                 Hamilton Key Corridor
## 8        74 Homewood - Squirrel Hill        Local
## 9        83             Bedford Hill        Local
## 10       89         Garfield Commons        Local
##                          geometry          full_route_name_id
## 1  MULTILINESTRING ((3293319 9...                26 Chartiers
## 2  MULTILINESTRING ((3293319 9...                27 Fairywood
## 3  MULTILINESTRING ((3294223 9...           40 Mt. Washington
## 4  MULTILINESTRING ((3293614 9...  61C McKeesport - Homestead
## 5  MULTILINESTRING ((3300806 9...            65 Squirrel Hill
## 6  MULTILINESTRING ((3293614 9...                  71A Negley
## 7  MULTILINESTRING ((3293614 9...                71D Hamilton
## 8  MULTILINESTRING ((3298497 9... 74 Homewood - Squirrel Hill
## 9  MULTILINESTRING ((3293794 9...             83 Bedford Hill
## 10 MULTILINESTRING ((3298392 9...         89 Garfield Commons

This is what the transit lines look like on a basic map:

transit_lines %>%
  ggplot(aes(color = route_id)) +
    geom_sf() +
    guides(color = FALSE) +
    theme_minimal()

This creates a table of route_id and service_type that I will join against later.

df_service_type <- transit_lines %>%
  distinct(service_type, route_id, full_route_name_id) %>%
  st_drop_geometry()

This code loads the transit stop shapefile from the WPRDC:

transit_stops <- st_read("data/shapefiles/transit_stops/PAAC_Stops_1909.shp") %>%
  st_transform(3488) %>%
  clean_names() %>%
  mutate_at(vars(-all_of(c("geometry", "routes_cou"))), as.character) %>%
  select(stop_name, routes_served = routes_ser, routes_cou, geometry) %>%
  distinct(stop_name, routes_served = routes_served, routes_cou, geometry)
## Reading layer `PAAC_Stops_1909' from data source `/Users/conortompkins/github_repos/blog_hugo_academic/content/post/visualizing-transit-connections-between-pittsburgh-census-tracts/data/shapefiles/transit_stops/PAAC_Stops_1909.shp' using driver `ESRI Shapefile'
## Simple feature collection with 6946 features and 17 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 1300000 ymin: 350000 xmax: 1400000 ymax: 490000
## projected CRS:  NAD83(2011) / Pennsylvania South (ftUS)
transit_stops
## Simple feature collection with 6946 features and 3 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 960000 xmax: 3300000 ymax: 1000000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##                              stop_name routes_served routes_cou
## 1  26TH ST AT PENN AVE FS (SPRING WAY)    54, 88, 91          3
## 2               28TH ST AT LIBERTY AVE            54          1
## 3                32ND ST AT SPRING WAY    54, 88, 91          3
## 4                 40TH ST AT BUTLER ST            93          1
## 5            40TH ST AT DAVIDSON ST FS            93          1
## 6              40TH ST OPP DAVIDSON ST        64, 93          2
## 7                  4TH ST AT COREY AVE            59          1
## 8               FIFTH AVE AT AIKEN AVE 28X, 71B, 71D          3
## 9            FIFTH AVE AT AMBERSON AVE 28X, 71B, 71D          3
## 10         FIFTH AVE AT BEECHWOOD BLVD      28X, 71D          2
##                  geometry
## 1  POINT (3294762 976882)
## 2  POINT (3294959 977172)
## 3  POINT (3295178 977765)
## 4  POINT (3295366 978861)
## 5  POINT (3295502 978803)
## 6  POINT (3295495 978788)
## 7  POINT (3305461 976046)
## 8  POINT (3298449 977796)
## 9  POINT (3298126 977556)
## 10 POINT (3299655 978942)

Much of the important data is stored in the routes_served column. This code pivots the data longer to make it easier to work with.

#identify maximum number of routes served by a stop
max_routes_served <- transit_stops %>%
  summarize(max_routes = max(routes_cou)) %>%
  pull(max_routes)

transit_stops %>%
  filter(routes_cou == max_routes_served)
## Simple feature collection with 1 feature and 3 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 980000 xmax: 3300000 ymax: 980000
## projected CRS:  NAD83(NSRS2007) / California Albers
##                       stop_name
## 1 EAST BUSWAY AT PENN STATION C
##                                                                                 routes_served
## 1 1, 11, 15, 19L, 39, 40, 44, 6, P1, P10, P12, P16, P17, P2, P67, P68, P69, P7, P71, P76, P78
##   routes_cou               geometry
## 1         21 POINT (3294168 975311)
#separate routes_served into multiple columns, one per route
transit_stops <- transit_stops %>%
  separate(routes_served, sep = ", ", into = str_c("route_", 1:max_routes_served), extra = "merge", fill = "right")

transit_stops
## Simple feature collection with 6946 features and 23 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 960000 xmax: 3300000 ymax: 1000000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##                              stop_name route_1 route_2 route_3 route_4 route_5
## 1  26TH ST AT PENN AVE FS (SPRING WAY)      54      88      91    <NA>    <NA>
## 2               28TH ST AT LIBERTY AVE      54    <NA>    <NA>    <NA>    <NA>
## 3                32ND ST AT SPRING WAY      54      88      91    <NA>    <NA>
## 4                 40TH ST AT BUTLER ST      93    <NA>    <NA>    <NA>    <NA>
## 5            40TH ST AT DAVIDSON ST FS      93    <NA>    <NA>    <NA>    <NA>
## 6              40TH ST OPP DAVIDSON ST      64      93    <NA>    <NA>    <NA>
## 7                  4TH ST AT COREY AVE      59    <NA>    <NA>    <NA>    <NA>
## 8               FIFTH AVE AT AIKEN AVE     28X     71B     71D    <NA>    <NA>
## 9            FIFTH AVE AT AMBERSON AVE     28X     71B     71D    <NA>    <NA>
## 10         FIFTH AVE AT BEECHWOOD BLVD     28X     71D    <NA>    <NA>    <NA>
##    route_6 route_7 route_8 route_9 route_10 route_11 route_12 route_13 route_14
## 1     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 2     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 3     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 4     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 5     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 6     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 7     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 8     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 9     <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
## 10    <NA>    <NA>    <NA>    <NA>     <NA>     <NA>     <NA>     <NA>     <NA>
##    route_15 route_16 route_17 route_18 route_19 route_20 route_21 routes_cou
## 1      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          3
## 2      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          1
## 3      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          3
## 4      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          1
## 5      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          1
## 6      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          2
## 7      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          1
## 8      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          3
## 9      <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          3
## 10     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>     <NA>          2
##                  geometry
## 1  POINT (3294762 976882)
## 2  POINT (3294959 977172)
## 3  POINT (3295178 977765)
## 4  POINT (3295366 978861)
## 5  POINT (3295502 978803)
## 6  POINT (3295495 978788)
## 7  POINT (3305461 976046)
## 8  POINT (3298449 977796)
## 9  POINT (3298126 977556)
## 10 POINT (3299655 978942)
transit_stops %>%
  filter(routes_cou == max_routes_served)
## Simple feature collection with 1 feature and 23 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 980000 xmax: 3300000 ymax: 980000
## projected CRS:  NAD83(NSRS2007) / California Albers
##                       stop_name route_1 route_2 route_3 route_4 route_5 route_6
## 1 EAST BUSWAY AT PENN STATION C       1      11      15     19L      39      40
##   route_7 route_8 route_9 route_10 route_11 route_12 route_13 route_14 route_15
## 1      44       6      P1      P10      P12      P16      P17       P2      P67
##   route_16 route_17 route_18 route_19 route_20 route_21 routes_cou
## 1      P68      P69       P7      P71      P76      P78         21
##                 geometry
## 1 POINT (3294168 975311)
#pivot data longer
transit_stops <- transit_stops %>%
  pivot_longer(cols = starts_with("route_"), names_to = "route_number", values_to = "route_id") %>%
  st_as_sf()

transit_stops
## Simple feature collection with 145866 features and 4 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 960000 xmax: 3300000 ymax: 1000000
## projected CRS:  NAD83(NSRS2007) / California Albers
## # A tibble: 145,866 x 5
##    stop_name               routes_cou             geometry route_number route_id
##    <chr>                        <dbl>          <POINT [m]> <chr>        <chr>
##  1 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_1      54
##  2 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_2      88
##  3 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_3      91
##  4 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_4      <NA>
##  5 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_5      <NA>
##  6 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_6      <NA>
##  7 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_7      <NA>
##  8 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_8      <NA>
##  9 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_9      <NA>
## 10 26TH ST AT PENN AVE FS…          3     (3294762 976882) route_10     <NA>
## # … with 145,856 more rows
transit_stops <- transit_stops %>%
  filter(!is.na(route_id)) %>%
  left_join(df_service_type)

This code loads the census tract data via {tidycensus}. I choose the census tracts 42003020100 (Downtown) and 42003070300 (Shadyside).

#load tract data
allegheny_tracts <- get_decennial(geography = "tract",
                                  variables = c(total_pop = "P001001"),
                                  state = "PA",
                                  county = "Allegheny County",
                                  geometry = TRUE,
                                  output = "wide") %>%
  mutate(name = case_when(GEOID == "42003020100" ~ "Downtown",
                          GEOID == "42003070300" ~ "Shadyside")) %>%
  st_transform(3488)

#calculate centers of the tracts
allegheny_tracts_centroid <- allegheny_tracts %>%
  mutate(name = case_when(GEOID == "42003020100" ~ "Downtown",
                          GEOID == "42003070300" ~ "Shadyside")) %>%
  mutate(lon = map_dbl(geometry, ~st_centroid(.x)[[1]]),
         lat = map_dbl(geometry, ~st_centroid(.x)[[2]])) %>%
  st_drop_geometry() %>%
  st_as_sf(coords = c("lon", "lat"), crs = 3488) %>%
  st_transform(3488)

#creates table with geometry of the county border
allegheny <- allegheny_tracts %>%
  summarize()
commute_tracts <- allegheny_tracts %>%
  filter(!is.na(name))

commute_centroids <- allegheny_tracts_centroid %>%
  filter(!is.na(name))

This code uses st_is_within_distance to find the transit stops that are within 700 meters of the center of the Downtown AND Shadyside census tracts.

df_stops_joined_distance <- transit_stops %>%
  st_join(commute_centroids, st_is_within_distance, dist = 700, left = TRUE) %>%
  arrange(route_id)

df_stops_joined_distance
## Simple feature collection with 12087 features and 10 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 960000 xmax: 3300000 ymax: 1000000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##                        stop_name routes_cou route_number route_id service_type
## 1   WEST MIFFLIN GARAGE TERMINAL          4      route_2                  <NA>
## 2     LAYOVER PENN PARK TERMINAL         12      route_2                  <NA>
## 3     LAYOVER PENN PARK TERMINAL         12      route_6                  <NA>
## 4     LAYOVER PENN PARK TERMINAL         12      route_8                  <NA>
## 5     LAYOVER PENN PARK TERMINAL         12     route_11                  <NA>
## 6              4TH AVE AT 7TH ST          1      route_1        1        Local
## 7           E 4TH AVE AT BOYD ST          2      route_1        1        Local
## 8  4TH AVE AT CENTRAL CITY PLAZA          1      route_1        1        Local
## 9           E 4TH AVE AT LOCK ST          2      route_1        1        Local
## 10          E 4TH AVE AT WOOD ST          2      route_1        1        Local
##    full_route_name_id GEOID NAME total_pop name               geometry
## 1                <NA>  <NA> <NA>        NA <NA> POINT (3302630 969221)
## 2                <NA>  <NA> <NA>        NA <NA> POINT (3294348 975649)
## 3                <NA>  <NA> <NA>        NA <NA> POINT (3294348 975649)
## 4                <NA>  <NA> <NA>        NA <NA> POINT (3294348 975649)
## 5                <NA>  <NA> <NA>        NA <NA> POINT (3294348 975649)
## 6     1 Freeport Road  <NA> <NA>        NA <NA> POINT (3306225 995240)
## 7     1 Freeport Road  <NA> <NA>        NA <NA> POINT (3305254 999390)
## 8     1 Freeport Road  <NA> <NA>        NA <NA> POINT (3306153 995343)
## 9     1 Freeport Road  <NA> <NA>        NA <NA> POINT (3305377 999550)
## 10    1 Freeport Road  <NA> <NA>        NA <NA> POINT (3305323 999479)
df_stops_joined_distance <- df_stops_joined_distance %>%
  filter(!is.na(name))

df_stops_joined_distance
## Simple feature collection with 736 features and 10 fields
## geometry type:  POINT
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 970000 xmax: 3300000 ymax: 980000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##                             stop_name routes_cou route_number route_id
## 1          7TH ST AT FT DUQUESNE BLVD          9      route_1        1
## 2               7TH ST AT PENN AVE FS          4      route_1        1
## 3  LIBERTY AVE AT 7TH ST (CLARK BLDG)          8      route_1        1
## 4        LIBERTY AVE AT SMITHFIELD ST         19      route_1        1
## 5      LIBERTY AVE AT WILLIAM PENN PL         18      route_1        1
## 6              LIBERTY AVE OPP 9TH ST         20      route_1        1
## 7       LIBERTY AVE OPP SMITHFIELD ST          8      route_1        1
## 8          7TH ST AT FT DUQUESNE BLVD          9      route_2       11
## 9               7TH ST AT PENN AVE FS          4      route_2       11
## 10 LIBERTY AVE AT 7TH ST (CLARK BLDG)          8      route_2       11
##    service_type full_route_name_id       GEOID
## 1         Local    1 Freeport Road 42003020100
## 2         Local    1 Freeport Road 42003020100
## 3         Local    1 Freeport Road 42003020100
## 4         Local    1 Freeport Road 42003020100
## 5         Local    1 Freeport Road 42003020100
## 6         Local    1 Freeport Road 42003020100
## 7         Local    1 Freeport Road 42003020100
## 8         Local        11 Fineview 42003020100
## 9         Local        11 Fineview 42003020100
## 10        Local        11 Fineview 42003020100
##                                                NAME total_pop     name
## 1  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 2  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 3  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 4  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 5  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 6  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 7  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 8  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 9  Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
## 10 Census Tract 201, Allegheny County, Pennsylvania      3629 Downtown
##                  geometry
## 1  POINT (3293481 975066)
## 2  POINT (3293586 974931)
## 3  POINT (3293638 974904)
## 4  POINT (3293846 975073)
## 5  POINT (3293943 975161)
## 6  POINT (3293761 974994)
## 7  POINT (3293856 975107)
## 8  POINT (3293481 975066)
## 9  POINT (3293586 974931)
## 10 POINT (3293638 974904)
df_route_filter <- df_stops_joined_distance %>%
  st_drop_geometry() %>%
  distinct(route_id, name) %>%
  group_by(route_id) %>%
  filter(n() >= 2) %>%
  ungroup() %>%
  distinct(route_id)

df_route_filter
## # A tibble: 22 x 1
##    route_id
##    <chr>
##  1 28X
##  2 67
##  3 69
##  4 71A
##  5 71B
##  6 71C
##  7 71D
##  8 82
##  9 86
## 10 P1
## # … with 12 more rows
df_stops_joined_distance <- df_stops_joined_distance %>%
  semi_join(df_route_filter, by = c("route_id" = "route_id")) %>%
  left_join(df_service_type)

df_stops_joined_distance <- df_stops_joined_distance %>%
  mutate(stop_name_route_id_route_name = str_c(full_route_name_id, str_to_title(stop_name), sep = " - "))

To help visualize how the join works, imagine a buffer around each point (transit stop). This shows the stops from 71A with a buffer:

st_crs(transit_stops)$units
## [1] "m"
transit_stops %>%
  mutate(geometry_buffered = st_buffer(geometry, dist = 700)) %>%
  #st_transform(crs = 3488) %>%
  filter(route_id == "71A") %>%
  ggplot() +
    geom_sf(data = commute_centroids,
            color = "blue",
            size = 3) +
    geom_sf(color = "red", size = 1) +
    geom_sf(aes(geometry = geometry_buffered),
            fill = NA
            ) +
    #coord_sf(crs = 4326) +
    theme_minimal()

st_is_within_distance identifies which red points are within 700 meters of the blue points.

This shows the tracts, the tract centroids, and the transit stops within 700 meters of the centroids.

df_stops_joined_distance %>%
  ggplot() +
    geom_sf(data = commute_tracts) +
    geom_sf(data = commute_centroids, color = "red") +
    geom_sf() +
    theme_minimal()

This filters on the transit lines served by the stops that successfully joined against the Downtown and Shadyside centroids:

commuter_transit_lines <- transit_lines %>%
  semi_join(df_route_filter, by = c("route_id" = "route_id"))

commuter_transit_lines
## Simple feature collection with 22 features and 4 fields
## geometry type:  MULTILINESTRING
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 970000 xmax: 3300000 ymax: 1000000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##    route_id              route_name service_type         full_route_name_id
## 1       71A                  Negley Key Corridor                 71A Negley
## 2       71D                Hamilton Key Corridor               71D Hamilton
## 3        P2       East Busway Short        Rapid       P2 East Busway Short
## 4       P78           Oakmont Flyer      Express          P78 Oakmont Flyer
## 5        P1 East Busway - All Stops        Rapid P1 East Busway - All Stops
## 6       71B           Highland Park Key Corridor          71B Highland Park
## 7        69                Trafford        Local                69 Trafford
## 8        86                 Liberty        Local                 86 Liberty
## 9       P68    Braddock Hills Flyer      Express   P68 Braddock Hills Flyer
## 10      P69          Trafford Flyer      Express         P69 Trafford Flyer
##                          geometry
## 1  MULTILINESTRING ((3293614 9...
## 2  MULTILINESTRING ((3293614 9...
## 3  MULTILINESTRING ((3293856 9...
## 4  MULTILINESTRING ((3294045 9...
## 5  MULTILINESTRING ((3294045 9...
## 6  MULTILINESTRING ((3295547 9...
## 7  MULTILINESTRING ((3310878 9...
## 8  MULTILINESTRING ((3294134 9...
## 9  MULTILINESTRING ((3294049 9...
## 10 MULTILINESTRING ((3294049 9...

These are the transit lines that serve the two tracts:

commute_centroids %>%
  ggplot() +
    geom_sf(size = 3) +
    geom_sf(data = commuter_transit_lines, aes(color = route_id)) +
    theme_void()

This sets the bounding box for the final static map:

commute_zoom <- commute_tracts %>%
  st_buffer(dist = 700) %>%
  st_bbox()

This crops the transit lines to only include the parts within the bounding box:

commuter_transit_lines %>%
  st_crop(commute_zoom)
## Simple feature collection with 22 features and 4 fields
## geometry type:  GEOMETRY
## dimension:      XY
## bbox:           xmin: 3300000 ymin: 970000 xmax: 3300000 ymax: 980000
## projected CRS:  NAD83(NSRS2007) / California Albers
## First 10 features:
##    route_id              route_name service_type         full_route_name_id
## 1       71A                  Negley Key Corridor                 71A Negley
## 2       71D                Hamilton Key Corridor               71D Hamilton
## 3        P2       East Busway Short        Rapid       P2 East Busway Short
## 4       P78           Oakmont Flyer      Express          P78 Oakmont Flyer
## 5        P1 East Busway - All Stops        Rapid P1 East Busway - All Stops
## 6       71B           Highland Park Key Corridor          71B Highland Park
## 7        69                Trafford        Local                69 Trafford
## 8        86                 Liberty        Local                 86 Liberty
## 9       P68    Braddock Hills Flyer      Express   P68 Braddock Hills Flyer
## 10      P69          Trafford Flyer      Express         P69 Trafford Flyer
##                          geometry
## 1  MULTILINESTRING ((3293614 9...
## 2  MULTILINESTRING ((3293614 9...
## 3  MULTILINESTRING ((3293856 9...
## 4  LINESTRING (3294045 975240,...
## 5  MULTILINESTRING ((3294045 9...
## 6  MULTILINESTRING ((3295547 9...
## 7  MULTILINESTRING ((3299435 9...
## 8  MULTILINESTRING ((3294134 9...
## 9  MULTILINESTRING ((3294049 9...
## 10 MULTILINESTRING ((3294049 9...

This plots the Downtown and Shadyside census tracts and the transit lines and stops that serve them:

p <- commuter_transit_lines %>%
  st_crop(commute_zoom) %>%
  ggplot() +
    geom_sf(data = allegheny, fill = NA) +
    geom_sf(data = commute_tracts, aes(fill = name), size = 1, alpha = .5) +
    geom_sf_label(data = commute_centroids, aes(label = name)) +
    geom_sf(aes(color = route_id)) +
    geom_sf(data = st_jitter(df_stops_joined_distance), aes(color = route_id), shape = 21, size = 3) +
    geom_sf_label(aes(color = route_id, label = route_id)) +
    coord_sf(xlim = c(commute_zoom[1], commute_zoom[3]),
             ylim = c(commute_zoom[2], commute_zoom[4])) +
    facet_wrap(~service_type) +
    guides(color = FALSE,
           fill = FALSE) +
    theme_void() +
    theme(panel.border = element_rect(color = "black", fill = NA))

p

You can use this interactive map made with leaflet to explore the transit lines and stops that connect Downtown and Shadyside:

library(widgetframe)
#transform geometries to crs 4326

allegheny <- st_transform(allegheny, crs = 4326)
commute_tracts <- st_transform(commute_tracts, crs = 4326)
commuter_transit_lines <- st_transform(commuter_transit_lines, crs = 4326)
df_stops_joined_distance <- st_transform(df_stops_joined_distance, crs = 4326)
commute_tracts <- st_transform(commute_tracts, crs = 4326)

commute_zoom <- commute_tracts %>%
  st_buffer(dist = .01) %>%
  st_bbox()

names(commute_zoom) <- NULL

###leaflet
transit_lines_palette <- colorFactor(palette = "Set1", domain = commuter_transit_lines$full_route_name_id)
tract_palette <- colorFactor(palette = "Set1", domain = commute_tracts$GEOID)

interactive_map <- leaflet() %>%
  addProviderTiles(providers$CartoDB.Positron) %>%
  addPolygons(data = allegheny,
              color = "#444444",
              stroke = TRUE,
              fillOpacity = 0,
              opacity = 1,
              weight = 2,
              group = "Census tracts") %>%
  addPolygons(data = commute_tracts,
              #color
              color = NA,
              #fill
              fillColor = ~tract_palette(GEOID),
              fillOpacity = .3,

              #label
              label = commute_tracts$name,
              group = "Census tracts") %>%
  addPolylines(data = commuter_transit_lines,
              color = ~transit_lines_palette(full_route_name_id),
              label = commuter_transit_lines$full_route_name_id,

              #highlight
              highlightOptions = highlightOptions(weight = 10, bringToFront = TRUE),
              group = "Transit lines and stops"
               ) %>%
  addCircles(data = df_stops_joined_distance,
             radius = 3,
             color = ~transit_lines_palette(full_route_name_id),

             #highlight
             highlightOptions = highlightOptions(weight = 10, bringToFront = TRUE),

             #label
             label = str_to_title(df_stops_joined_distance$stop_name_route_id_route_name),
             group = "Transit lines and stops") %>%
  addLayersControl(overlayGroups = c("Census tracts","Transit lines and stops"), position = "topleft",
                   options = layersControlOptions(collapsed = FALSE)) %>%
  addMiniMap() %>%
  fitBounds(lng1 = commute_zoom[[1]], lat1 = commute_zoom[[2]], lng2 = commute_zoom[[3]], lat2 = commute_zoom[[4]])

frameWidget(interactive_map)

Related
