How Many Pittsburghers Cross the River to Get to Work

This post focuses on how many rivers Pittsburghers cross to get to work. I use the U.S. Census Bureau LEHD Origin-Destination Employment Statistics (LODES) dataset to draw lines between “home” census tracts and “work” census tracts, and then count how many “commuter lines” intersect with the 3 main rivers in Pittsburgh. This calculation is done in straight lines “as the crow flies”, not accounting for actual road routes.

TLDR

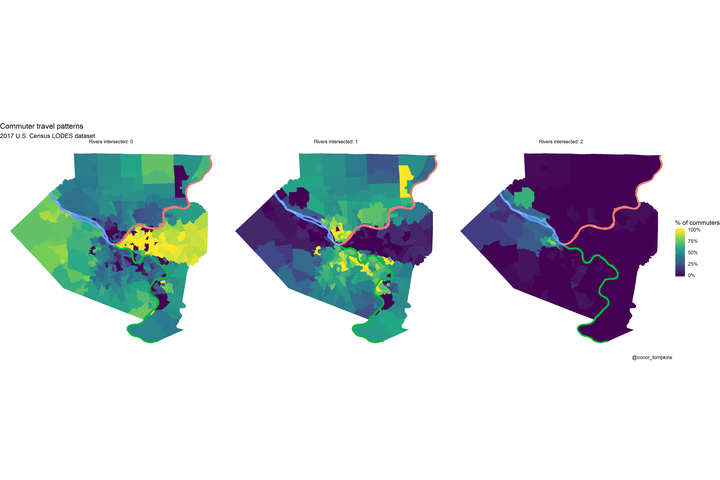

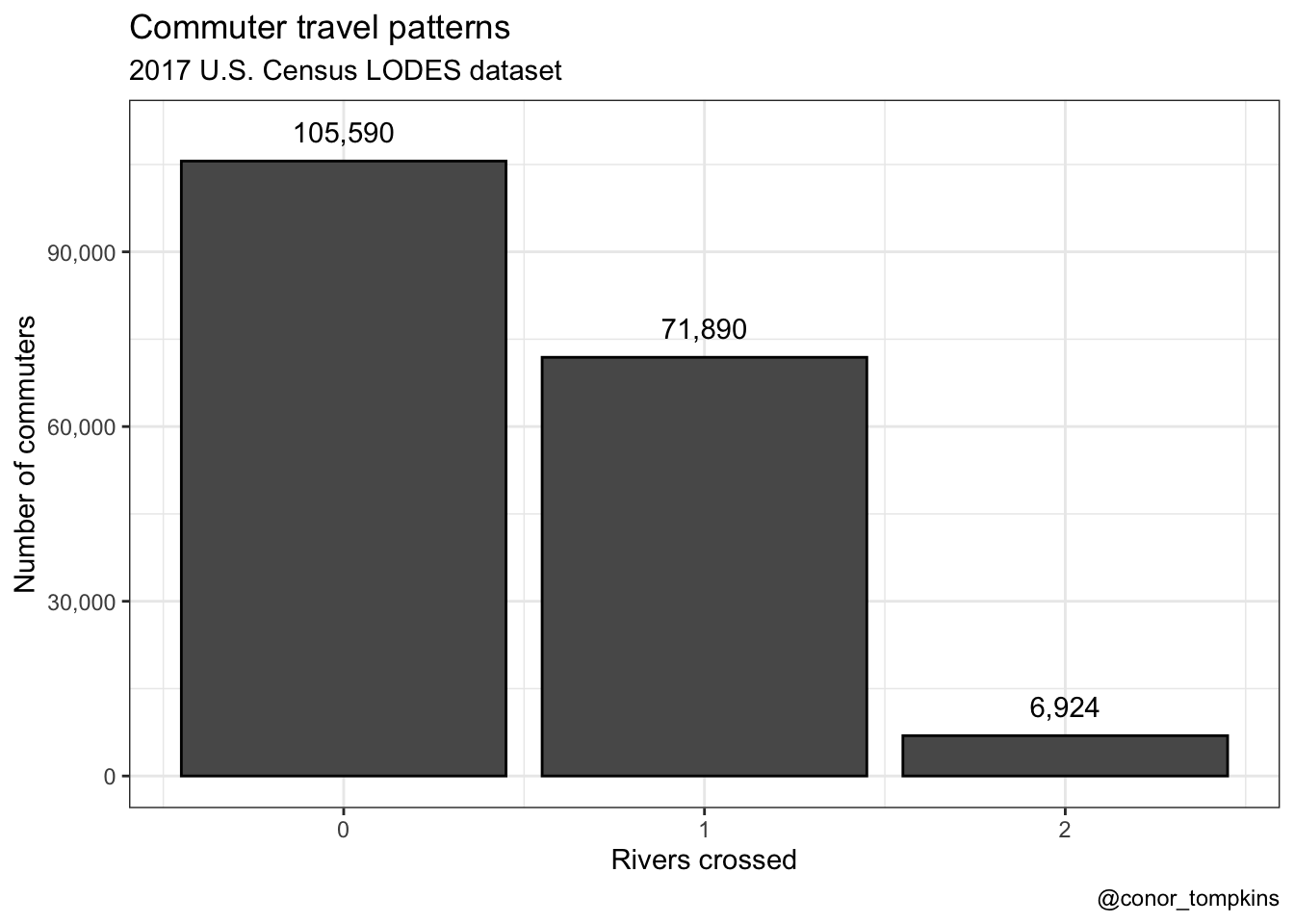

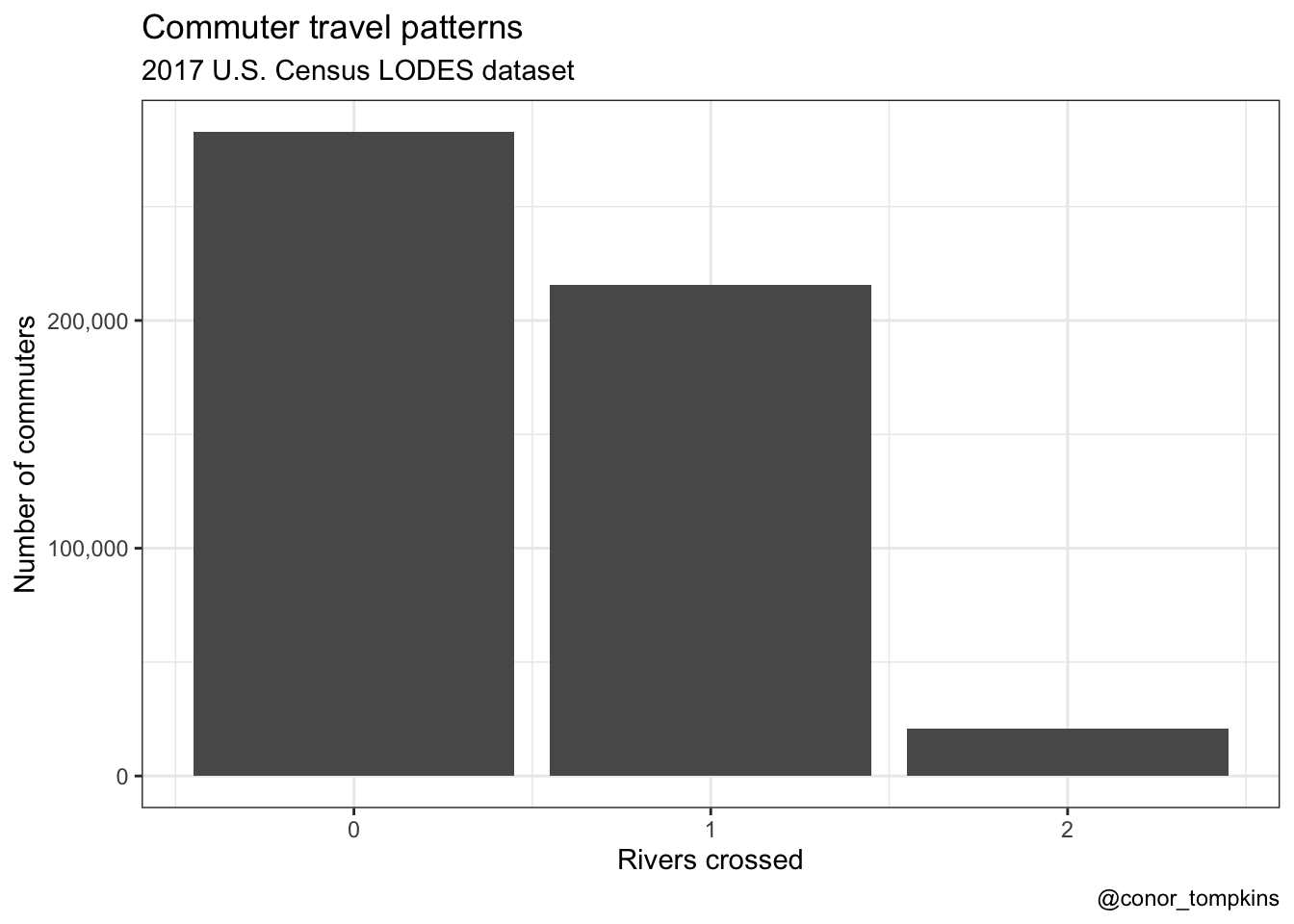

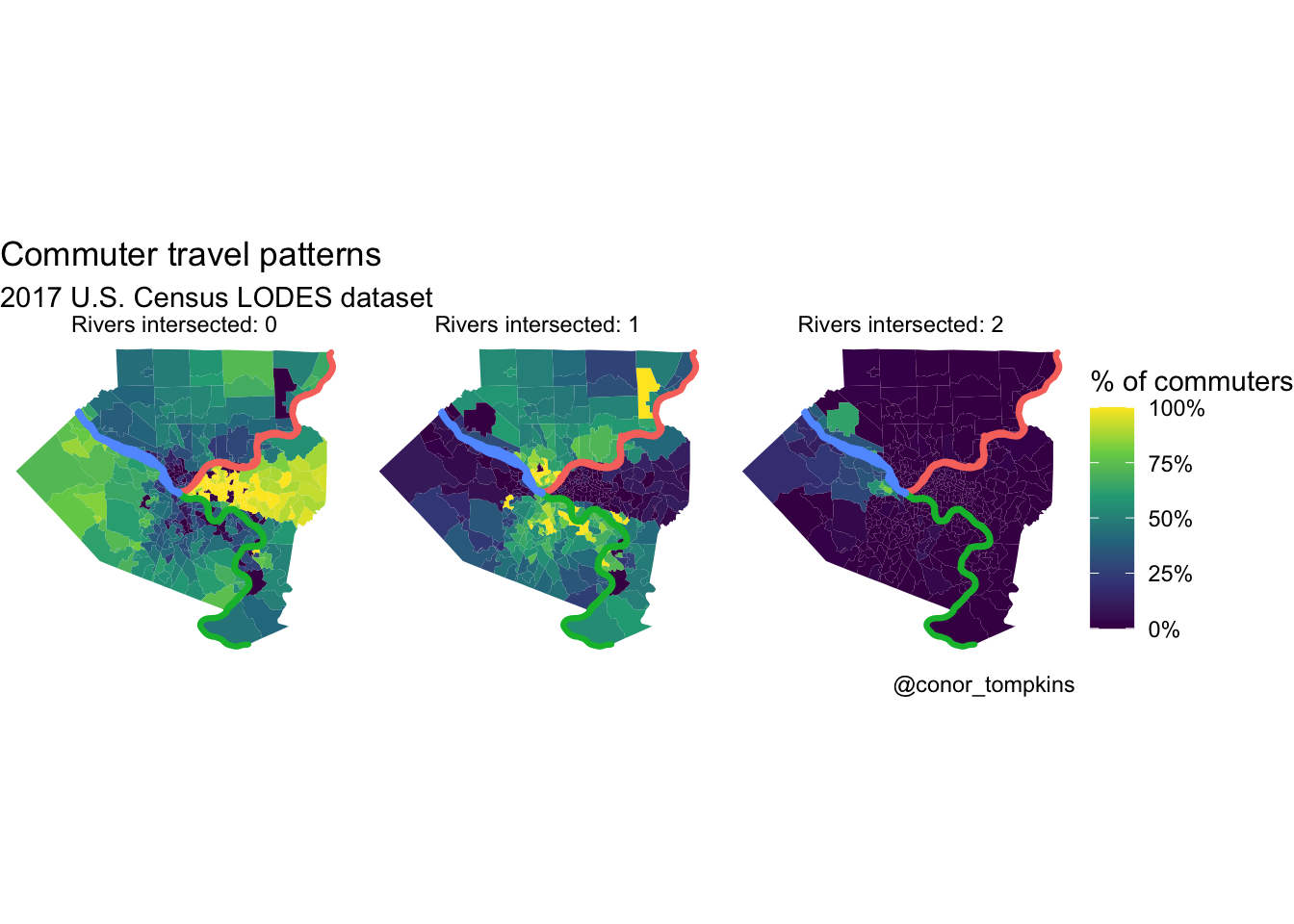

A plurality of commuters don’t cross any rivers, and none cross three.

Many commuters in the Golden Triangle and neighborhoods to the east don’t cross rivers to get to work. Commuters from the North and South Hills areas usually cross one river. Commuters from Sewickley, Coraopolis, and those that live close to the airport are most likely to cross two rivers.

Data munging and analysis

I use the “pa_od_aux_JT00_2017.csv” file as shown here:

In my analysis I use many of the standard {tidyverse} packages, {sf}, {tidycensus}, {tidygraph}, and {ggraph}:

library(tidyverse)
library(vroom)
library(sf)
library(tigris)
library(tidycensus)
library(tidygraph)
library(ggraph)

The first step is to read in the geographies crosswalk:

geo_crosswalk <- vroom("data/pa_xwalk.csv.gz", col_types = cols(.default = "c"))

geo_crosswalk
## # A tibble: 421,545 x 43
##    tabblk2010 st    stusps stname cty   ctyname trct  trctname bgrp  bgrpname
##    <chr>      <chr> <chr>  <chr>  <chr> <chr>   <chr> <chr>    <chr> <chr>
##  1 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  2 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  3 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  4 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  5 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  6 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  7 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  8 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
##  9 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
## 10 420010301… 42    PA     Penns… 42001 Adams … 4200… 301.01 … 4200… 1 (Trac…
## # … with 421,535 more rows, and 33 more variables: cbsa <chr>, cbsaname <chr>,
## #   zcta <chr>, zctaname <chr>, stplc <chr>, stplcname <chr>, ctycsub <chr>,
## #   ctycsubname <chr>, stcd115 <chr>, stcd115name <chr>, stsldl <chr>,
## #   stsldlname <chr>, stsldu <chr>, stslduname <chr>, stschool <chr>,
## #   stschoolname <chr>, stsecon <chr>, stseconname <chr>, trib <chr>,
## #   tribname <chr>, tsub <chr>, tsubname <chr>, stanrc <chr>, stanrcname <chr>,
## #   necta <chr>, nectaname <chr>, mil <chr>, milname <chr>, stwib <chr>,
## #   stwibname <chr>, blklatdd <chr>, blklondd <chr>, createdate <chr>

This downloads the census tract shapefiles:

allegheny_tracts <- get_decennial(geography = "tract",
                           variables = c(total_pop = "P001001"),
                           state = "PA",
                           county = "Allegheny County",
                           geometry = TRUE,
                           output = "wide")

allegheny_tracts
## Simple feature collection with 402 features and 3 fields
## geometry type:  MULTIPOLYGON
## dimension:      XY
## bbox:           xmin: -80 ymin: 40 xmax: -80 ymax: 41
## geographic CRS: NAD83
## # A tibble: 402 x 4
##    GEOID   NAME                total_pop                                geometry
##    <chr>   <chr>                   <dbl>                      <MULTIPOLYGON [°]>
##  1 420034… Census Tract 4120.…      4865 (((-80 41, -80 41, -80 41, -80 41, -80…
##  2 420034… Census Tract 4131,…      6609 (((-80 41, -80 41, -80 41, -80 41, -80…
##  3 420034… Census Tract 4133,…      4742 (((-80 41, -80 41, -80 41, -80 41, -80…
##  4 420034… Census Tract 4160,…      1636 (((-80 41, -80 41, -80 41, -80 41, -80…
##  5 420034… Census Tract 4172,…      1260 (((-80 41, -80 41, -80 41, -80 41, -80…
##  6 420034… Census Tract 4230,…      2801 (((-80 40, -80 40, -80 40, -80 40, -80…
##  7 420034… Census Tract 4268,…      5369 (((-80 41, -80 41, -80 41, -80 41, -80…
##  8 420034… Census Tract 4281,…      1242 (((-80 40, -80 40, -80 40, -80 40, -80…
##  9 420034… Census Tract 4295,…      4212 (((-80 41, -80 41, -80 41, -80 41, -80…
## 10 420034… Census Tract 4311,…      3380 (((-80 40, -80 40, -80 40, -80 40, -80…
## # … with 392 more rows

This is the shapefile of the rivers:

rivers <- st_read("data/Allegheny_County_Major_Rivers/Allegheny_County_Major_Rivers.shp") %>%
  group_by(NAME) %>%
  summarize() %>%
  filter(!is.na(NAME))
## Reading layer `Allegheny_County_Major_Rivers' from data source `/Users/conortompkins/github_repos/blog_hugo_academic/content/post/how-many-pittsburghers-cross-the-river-to-get-to-work/data/Allegheny_County_Major_Rivers/Allegheny_County_Major_Rivers.shp' using driver `ESRI Shapefile'
## Simple feature collection with 4 features and 4 fields
## geometry type:  POLYGON
## dimension:      XY
## bbox:           xmin: -80 ymin: 40 xmax: -80 ymax: 41
## geographic CRS: WGS 84
rivers
## Simple feature collection with 3 features and 1 field
## geometry type:  POLYGON
## dimension:      XY
## bbox:           xmin: -80 ymin: 40 xmax: -80 ymax: 41
## geographic CRS: WGS 84
## # A tibble: 3 x 2
##   NAME                                                                  geometry
## * <chr>                                                            <POLYGON [°]>
## 1 Allegheny Riv… ((-80 40, -80 40, -80 40, -80 40, -80 40, -80 40, -80 40, -80 …
## 2 Monongahela R… ((-80 40, -80 40, -80 40, -80 40, -80 40, -80 40, -80 40, -80 …
## 3 Ohio River     ((-80 40, -80 40, -80 40, -80 40, -80 40, -80 40, -80 40, -80 …

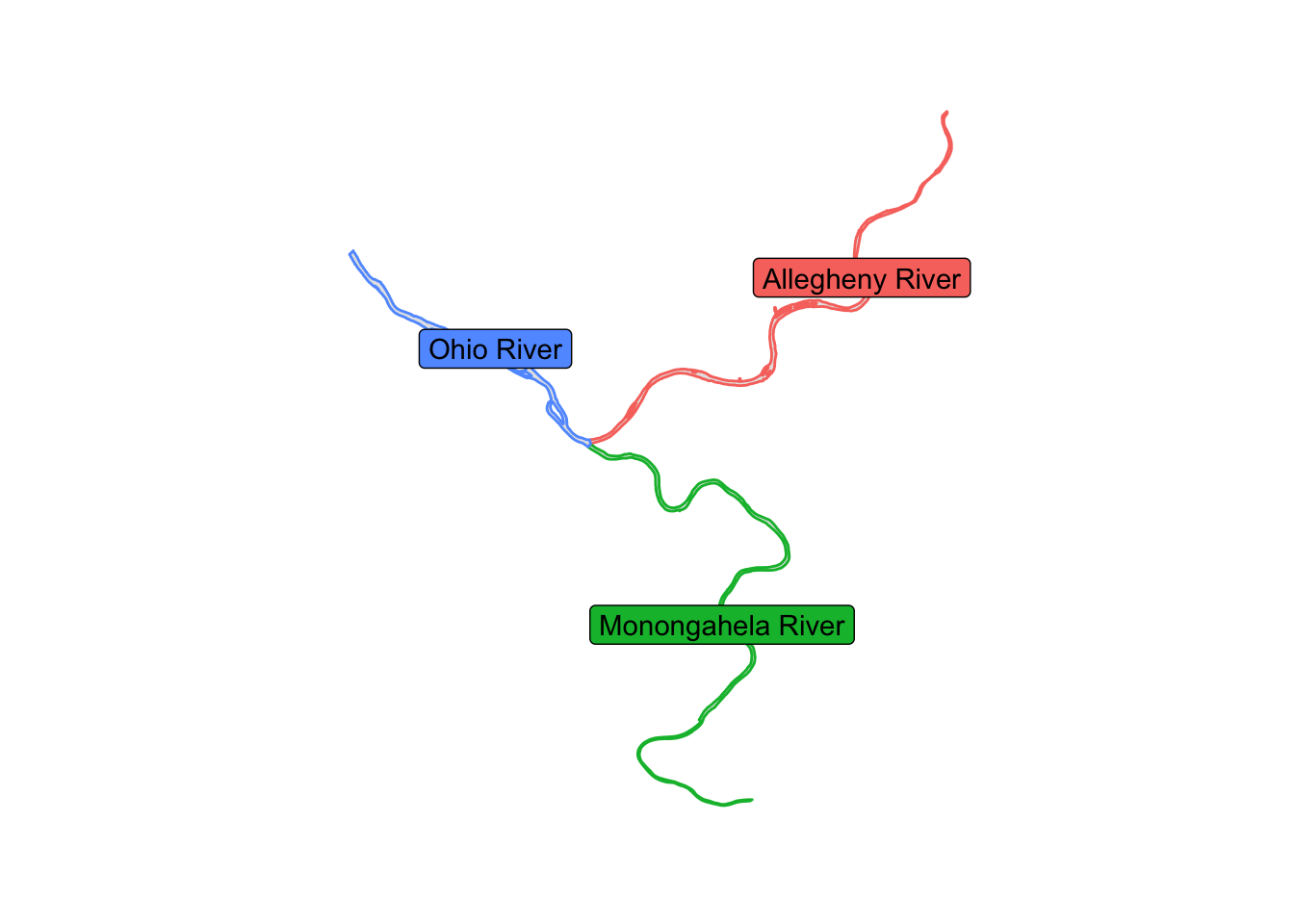

These are the rivers:

rivers %>%
  ggplot() +
    geom_sf(aes(color = NAME), show.legend = FALSE) +
    geom_sf_label(aes(label = NAME, fill = NAME), show.legend = FALSE) +
    theme_graph()

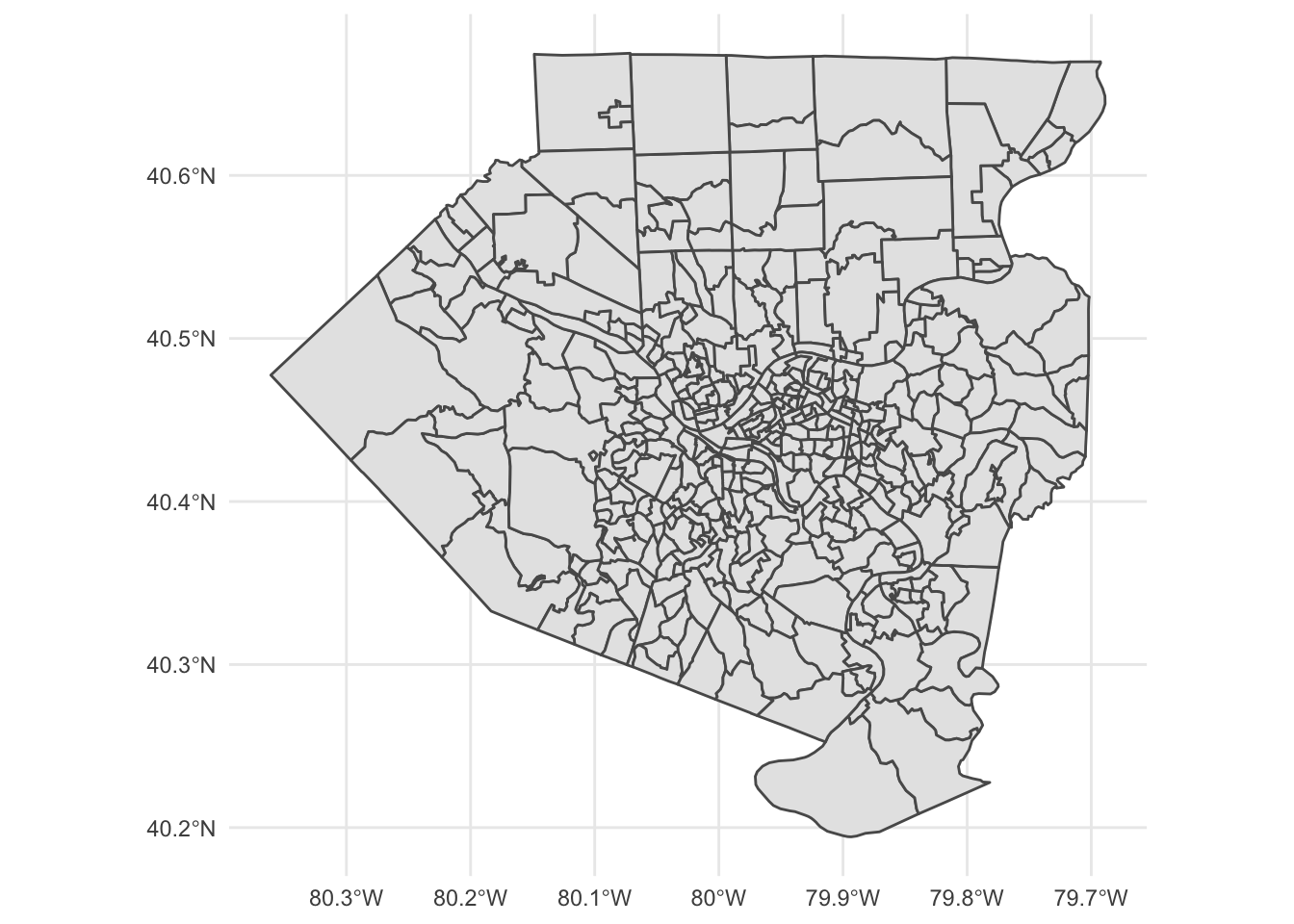

This shows the outlines of the tracts used in the analysis.

allegheny_tracts %>%
  ggplot() +
    geom_sf() +
    theme_minimal()

Next I read in the main LODES data. This is a big file, so it takes a moment.

df <- vroom("data/pa_od_main_JT00_2017.csv.gz", col_types = cols(.default = "c")) %>%
  mutate(S000 = as.numeric(S000)) %>%
  select(h_geocode, w_geocode, S000)

df
## # A tibble: 5,034,208 x 3
##    h_geocode       w_geocode        S000
##    <chr>           <chr>           <dbl>
##  1 420010301022005 420010301011003     1
##  2 420010303002001 420010301011003     1
##  3 420010301023038 420010301011012     1
##  4 420010314011078 420010301011012     1
##  5 420010301011027 420010301011016     1
##  6 420010301011033 420010301011016     1
##  7 420010301011038 420010301011016     1
##  8 420010301011116 420010301011016     1
##  9 420010301011123 420010301011016     1
## 10 420010302001018 420010301011016     1
## # … with 5,034,198 more rows

Next I summarize the number of commuters per home-work tract combination. The original file uses census block codes, which are too granular for this analysis. I link the blocks to census tracts and aggregate to that level.

df_tracts_summarized <- df %>%
  group_by(h_geocode, w_geocode) %>%
  summarize(commuters = sum(S000)) %>%
  ungroup() %>%
  arrange(desc(commuters))

df_tracts_summarized <- df_tracts_summarized %>%
  left_join(geo_crosswalk %>% select(tabblk2010, trct), by = c("h_geocode" = "tabblk2010")) %>%
  rename(h_tract = trct) %>%
  left_join(geo_crosswalk %>% select(tabblk2010, trct), by = c("w_geocode" = "tabblk2010")) %>%
  rename(w_tract = trct)

df_tracts_summarized <- df_tracts_summarized %>%
  group_by(h_tract, w_tract) %>%
  summarize(commuters = sum(commuters)) %>%
  ungroup() %>%
  arrange(desc(commuters))

df_tracts_summarized <- df_tracts_summarized %>%
  semi_join(allegheny_tracts, by = c("h_tract" = "GEOID")) %>%
  semi_join(allegheny_tracts, by = c("w_tract" = "GEOID"))

# df_tracts_summarized %>%
#    summarize(jobs = sum(commuters))
# 479006 total commuters

This code finds the center of each tract, which I use as the nodes in the network plots:

allegheny_tracts <- allegheny_tracts %>%
  arrange(GEOID)

allegheny_tracts_centroids <- cbind(allegheny_tracts,
                                    st_coordinates(st_centroid(allegheny_tracts))) %>%
  st_set_geometry(NULL) %>%
  as_tibble() %>%
  rename(x = X,
         y = Y) %>%
  select(GEOID, x, y)

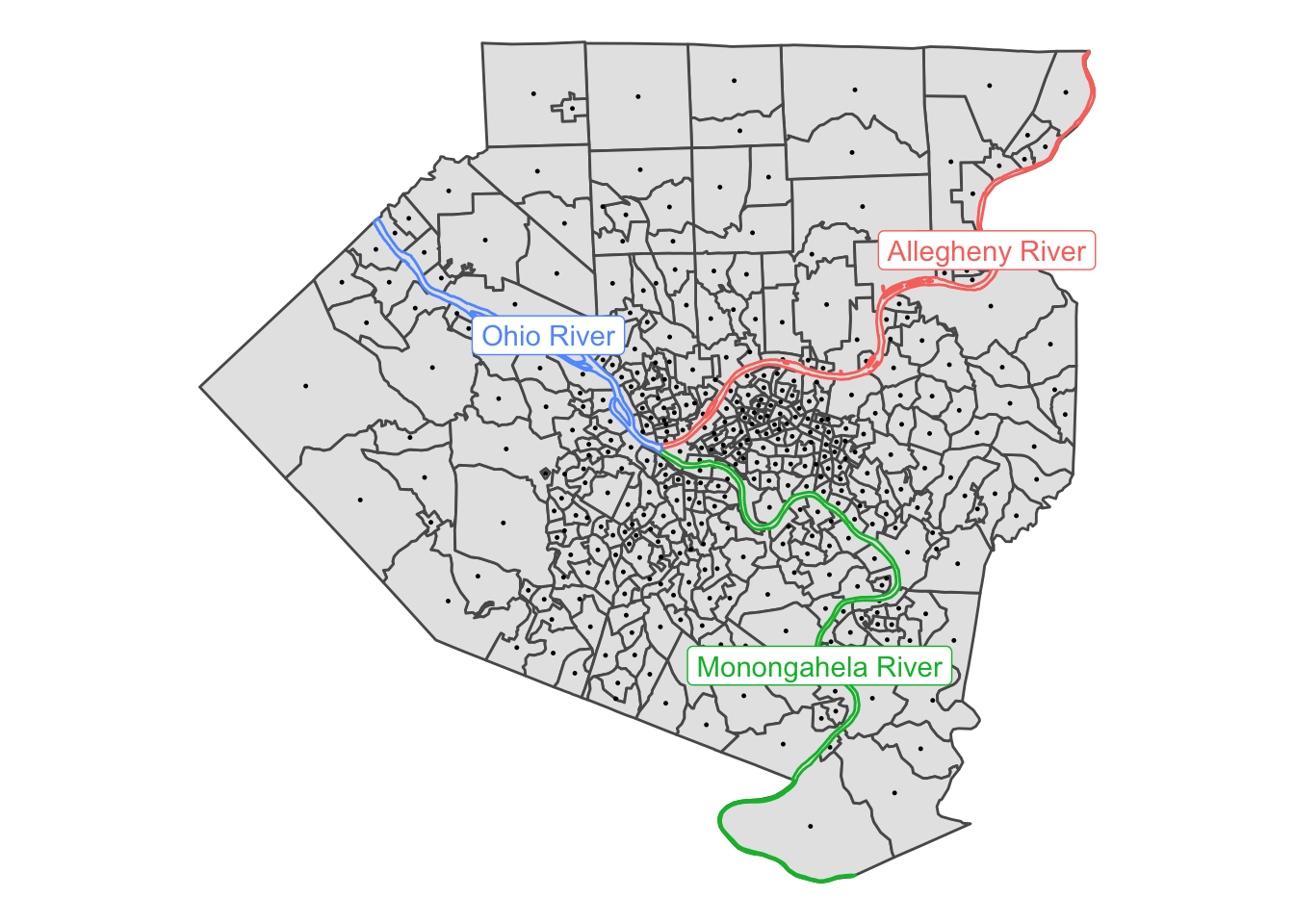

This shows that the centroids correctly appear in the center of each tract:

allegheny_tracts %>%
  ggplot() +
    geom_sf() +
    geom_point(data = allegheny_tracts_centroids, aes(x, y), size = .2) +
    geom_sf(data = rivers, aes(color = NAME), show.legend = FALSE) +
    geom_sf_label(data = rivers, aes(color = NAME, label = NAME),
                  show.legend = FALSE) +
    theme_void()

Here I filter on commuter lines that have at least 25 commuters.

g <- df_tracts_summarized %>%
  as_tbl_graph(directed = TRUE) %>%
  activate(edges) %>%
  filter(commuters > 25)

g
## # A tbl_graph: 402 nodes and 2978 edges
## #
## # A directed multigraph with 17 components
## #
## # Edge Data: 2,978 x 3 (active)
##    from    to commuters
##   <int> <int>     <dbl>
## 1     1     1       721
## 2     2     1       619
## 3     2     2       488
## 4     3     1       487
## 5     4     1       442
## 6     5     5       442
## # … with 2,972 more rows
## #
## # Node Data: 402 x 1
##   name
##   <chr>
## 1 42003020100
## 2 42003409000
## 3 42003191800
## # … with 399 more rows
# df_tracts_summarized %>%
#   as_tbl_graph(directed = TRUE) %>%
#   activate(edges) %>%
#   filter(commuters > 25) %>%
#   as_tibble() %>%
#   summarize(jobs = sum(commuters))
# 184404 total commuters

Here I set a manual layout for the ggraph object. I use the centroids of the census tracts as the nodes in the network graph.

node_pos <- allegheny_tracts_centroids

manual_layout <- create_layout(graph = g,
                               layout = node_pos)

manual_layout %>%
  as_tibble()
## # A tibble: 402 x 7
##    GEOID           x     y name        .ggraph.orig_index .ggraph.index circular
##    <chr>       <dbl> <dbl> <chr>                    <int>         <int> <lgl>
##  1 42003010300 -80.0  40.4 42003020100                  1             1 FALSE
##  2 42003020100 -80.0  40.4 42003409000                  2             2 FALSE
##  3 42003020300 -80.0  40.5 42003191800                  3             3 FALSE
##  4 42003030500 -80.0  40.4 42003412001                  4             4 FALSE
##  5 42003040200 -80.0  40.4 42003452000                  5             5 FALSE
##  6 42003040400 -79.9  40.4 42003411000                  6             6 FALSE
##  7 42003040500 -80.0  40.4 42003456003                  7             7 FALSE
##  8 42003040600 -80.0  40.4 42003191700                  8             8 FALSE
##  9 42003040900 -80.0  40.4 42003413100                  9             9 FALSE
## 10 42003050100 -80.0  40.4 42003426300                 10            10 FALSE
## # … with 392 more rows

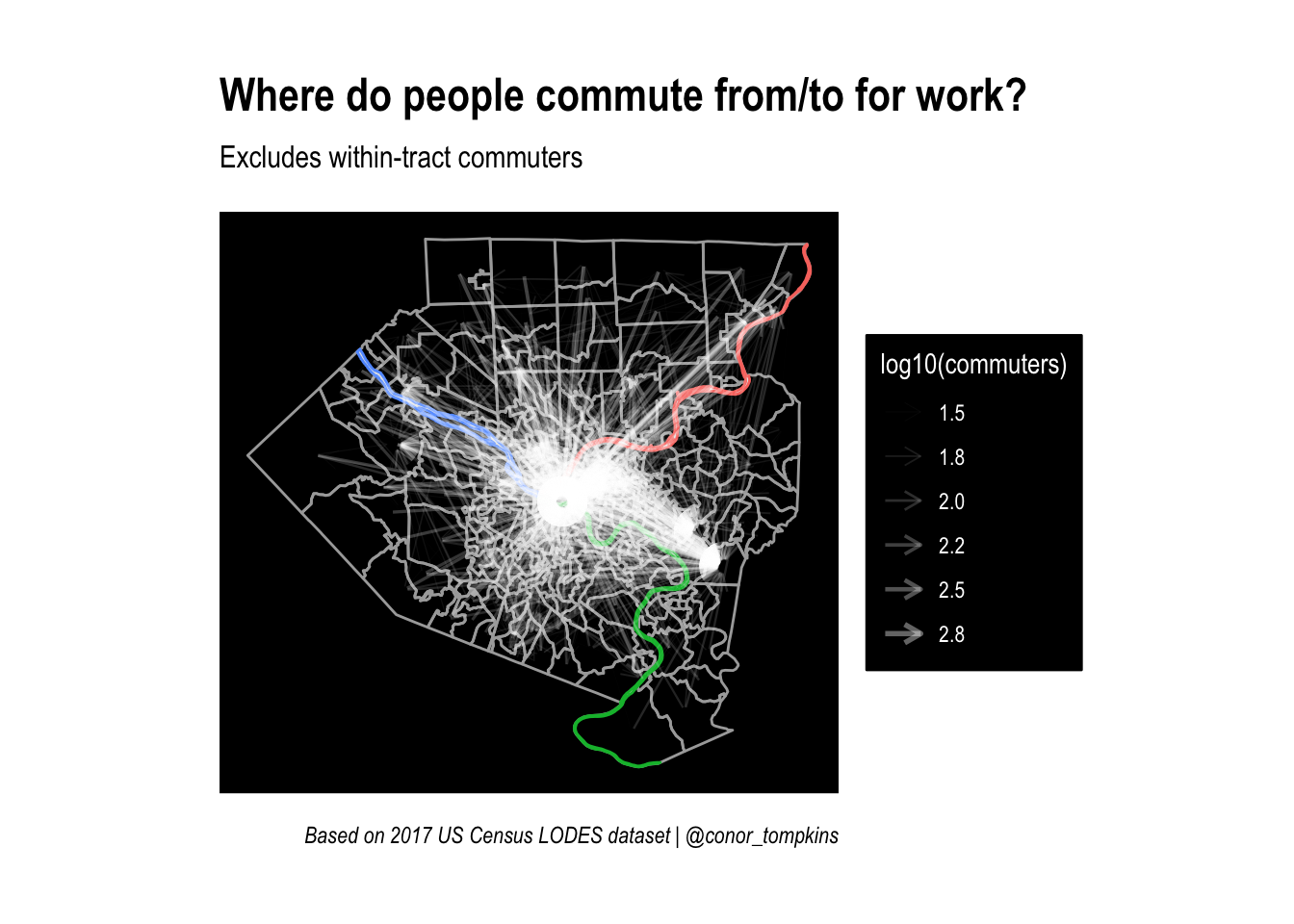

This graphs the commuter lines on top of the census tracts and rivers:

ggraph(manual_layout) +
  geom_sf(data = allegheny_tracts, color = "dark grey", fill = NA) +
  geom_sf(data = rivers, aes(color = NAME), show.legend = FALSE) +
  geom_edge_fan(aes(edge_width = log10(commuters),
                    edge_alpha = log10(commuters)),
                arrow = arrow(length = unit(.5, 'lines')),
                start_cap = circle(.1, 'lines'),
                end_cap = circle(.2, 'lines'),
                color = "white",
                strength = .5) +
  scale_edge_width_continuous(range = c(.1, 1)) +
  scale_edge_alpha_continuous(range = c(.01, .4)) +
  labs(x = NULL,
       y = NULL,
       title = "Where do people commute from/to for work?",
       subtitle = "Excludes within-tract commuters",
       caption = "Based on 2017 US Census LODES dataset | @conor_tompkins") +
  theme_graph() +
  theme(legend.background = element_rect(fill = "black"),
        legend.text = element_text(color = "white"),
        legend.title = element_text(color = "white"),
        panel.background = element_rect(fill = "black"))

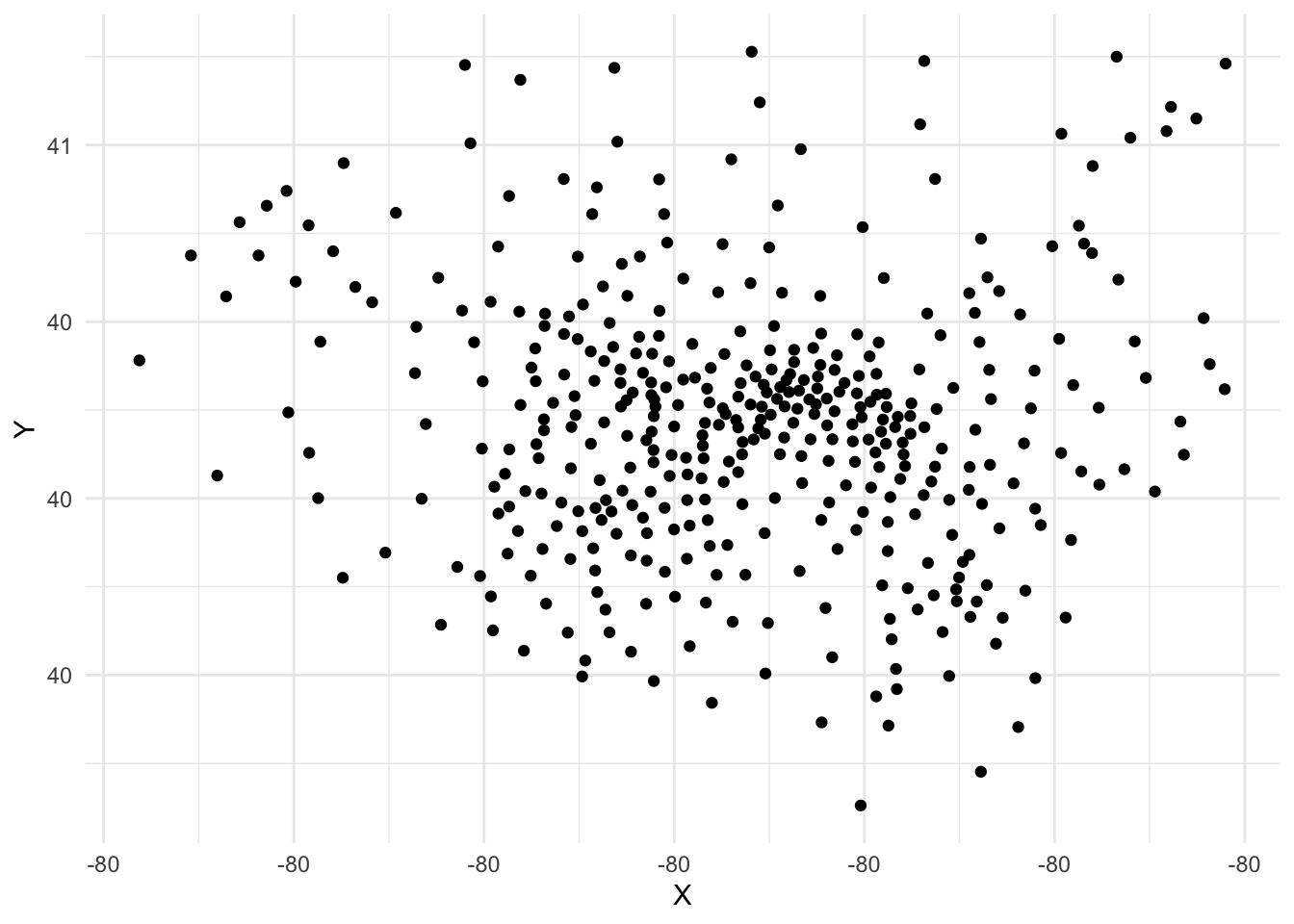

This calculates the centroids I will use to draw lines later on:

allegheny_lines <- cbind(allegheny_tracts, st_coordinates(st_centroid(allegheny_tracts))) %>%
  select(-c(NAME, total_pop)) %>%
  st_drop_geometry()

allegheny_lines %>%
  ggplot() +
    geom_point(aes(X, Y)) +
    theme_minimal()

Here I calculate the edges and nodes for the network graph:

df_edges <- g %>%
  activate(edges) %>%
  as_tibble()

# df_edges %>%
#   summarize(commuters = sum(commuters))
# 184404 total commuters

df_nodes <- g %>%
  activate(nodes) %>%
  as_tibble() %>%
  mutate(id = row_number())

The df_lines is pivoted long so there is a “to” and “from” row for each commuter line:

df_lines <- df_edges %>%
  mutate(line_id = row_number()) %>%
  pivot_longer(c(from, to), names_to = "point_type", values_to = "edge_id")

df_lines
## # A tibble: 5,956 x 4
##    commuters line_id point_type edge_id
##        <dbl>   <int> <chr>        <int>
##  1       721       1 from             1
##  2       721       1 to               1
##  3       619       2 from             2
##  4       619       2 to               1
##  5       488       3 from             2
##  6       488       3 to               2
##  7       487       4 from             3
##  8       487       4 to               1
##  9       442       5 from             4
## 10       442       5 to               1
## # … with 5,946 more rows
# df_lines %>%
#   distinct(line_id, commuters) %>%
#   summarize(jobs = sum(commuters))
# 184404 total commuters

Since some commuter “lines” are really just points that start and end at the same centroid, I separate the commuter “lines” from the “points” for purposes of manipulating the geometries.

df_line_types <- df_lines %>%
  pivot_wider(names_from = point_type, values_from = edge_id) %>%
  mutate(line_type = case_when(from == to ~ "point",
                               from != to ~ "linestring")) %>%
  pivot_longer(cols = c(from, to), names_to = "edge_type", values_to = "edge_id")

df_line_types
## # A tibble: 5,956 x 5
##    commuters line_id line_type  edge_type edge_id
##        <dbl>   <int> <chr>      <chr>       <int>
##  1       721       1 point      from            1
##  2       721       1 point      to              1
##  3       619       2 linestring from            2
##  4       619       2 linestring to              1
##  5       488       3 point      from            2
##  6       488       3 point      to              2
##  7       487       4 linestring from            3
##  8       487       4 linestring to              1
##  9       442       5 linestring from            4
## 10       442       5 linestring to              1
## # … with 5,946 more rows
# df_line_types %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
# # 184404 total commuters
df_linestrings <- df_line_types %>%
  filter(line_type == "linestring")

df_points <- df_line_types %>%
  filter(line_type == "point")

This creates the geometries for the lines, points, and rivers. Then I set them all to the same coordinate system with st_set_crs.

df_linestrings <- df_linestrings %>%
  left_join(df_nodes, by = c("edge_id" = "id")) %>%
  left_join(allegheny_lines, by = c("name" = "GEOID")) %>%
  st_as_sf(coords = c("X", "Y")) %>%
  group_by(line_id, commuters) %>%
  summarise() %>% # union points into lines using our created lineid
  st_cast("LINESTRING") %>%
  st_set_crs(4326)

# df_linestrings %>%
#   ungroup() %>%
#   st_drop_geometry() %>%
#   summarize(commuters = sum(commuters))

# 167409 commuters that change tracts

df_points <- df_points %>%
  left_join(df_nodes, by = c("edge_id" = "id")) %>%
  left_join(allegheny_lines, by = c("name" = "GEOID")) %>%
  st_as_sf(coords = c("X", "Y")) %>%
  group_by(line_id, commuters) %>%
  summarise() %>%
  st_cast("POINT") %>%
  st_set_crs(4326)

# df_points %>%
#   ungroup() %>%
#   st_drop_geometry() %>%
#   summarize(commuters = sum(commuters))

# 16995 commuters that stay within a tract
rivers <- rivers %>%
  st_set_crs(4326)

Here I calculate which commuter lines intersect with which rivers using st_intersects:

df_linestrings_intersect <- df_linestrings %>%
  ungroup() %>%
  mutate(intersects_ohio = st_intersects(., rivers %>%
                                            filter(NAME == "Ohio River")) %>% as.logical(),
         intersects_allegheny = st_intersects(., rivers %>%
                                                filter(NAME == "Allegheny River")) %>% as.logical(),
         intersects_monongahela = st_intersects(., rivers %>%
                                                  filter(NAME == "Monongahela River")) %>% as.logical())

df_commuter_rivers <- df_linestrings_intersect %>%
  pivot_longer(c(contains("intersects")), names_to = "river_intersected", values_to = "value") %>%
  mutate(value = case_when(is.na(value) ~ FALSE,
                           !is.na(value) ~ value))

# df_commuter_rivers %>%
#   distinct(line_id, commuters) %>%
#   summarize(jobs = sum(commuters))

# 167409 commuters that change tracts

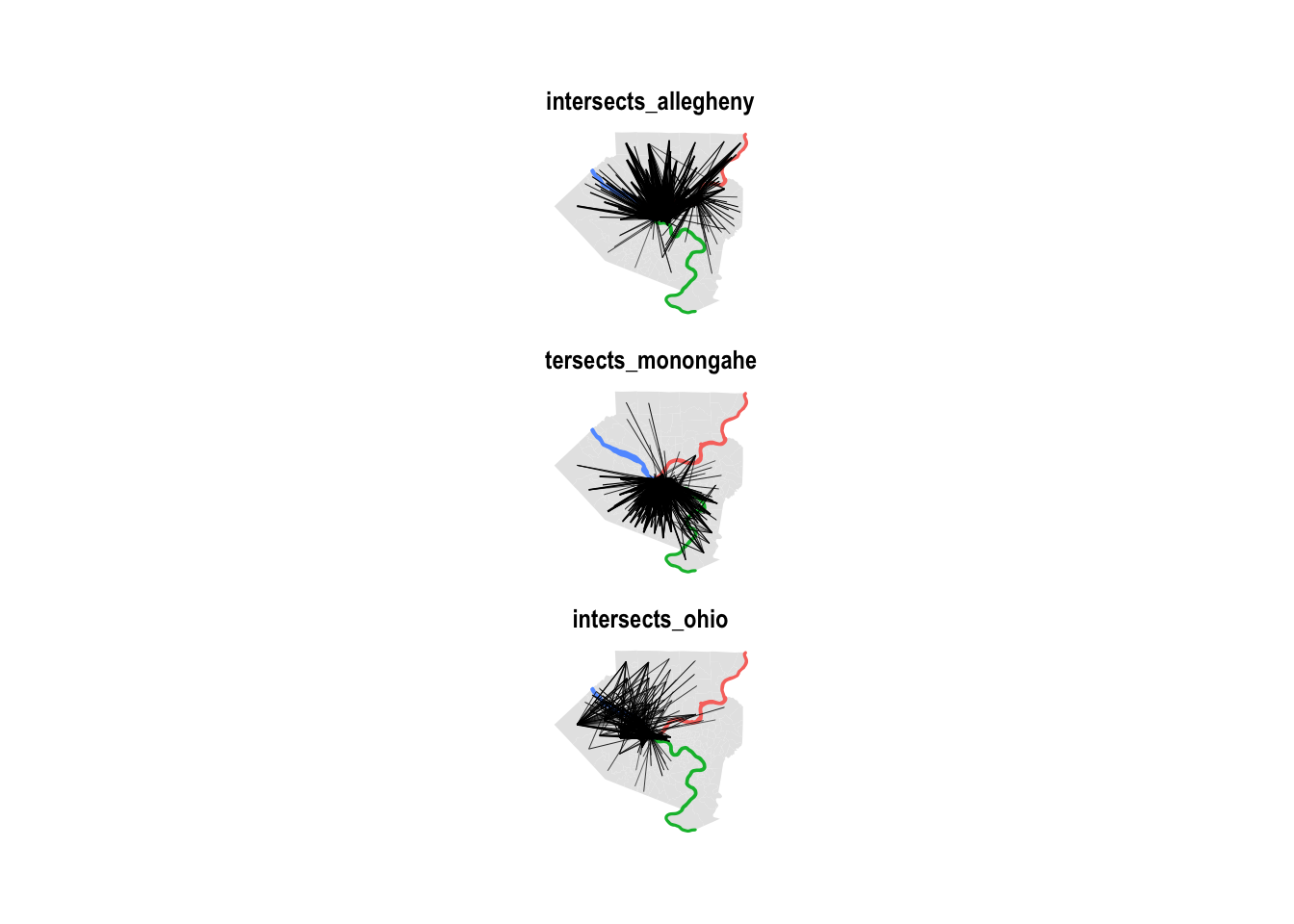

This shows that the intersection calculation was successful:

df_commuter_rivers %>%
  filter(value == TRUE) %>%
  ggplot() +
    geom_sf(data = allegheny_tracts, color = NA, show.legend = FALSE) +
    geom_sf(data = rivers,
            aes(color = NAME),
            show.legend = FALSE) +
    geom_sf(aes(geometry = geometry,
                size = commuters),
            show.legend = TRUE) +
    facet_wrap(~river_intersected,
               ncol = 1) +
    guides(color = FALSE,
           size = FALSE) +
    theme_graph() +
    scale_size_continuous(range = c(.1, .5))

This combines the dataframes with the lines and points, and then summarizes to count how many of the geometries intersected with a river:

#this was double counting
df_commuter_rivers_combined <- df_commuter_rivers %>%
  bind_rows(df_points %>%
              mutate(value = FALSE))

#use for lookup
df_lines_that_cross_rivers <- df_commuter_rivers_combined %>%
  group_by(line_id) %>%
  summarize(rivers_crossed = sum(value)) %>%
  ungroup()

#find the distinct line_ids and then summarize
df_commuter_rivers_summary <- df_commuter_rivers_combined %>%
  distinct(line_id, commuters) %>%
  left_join(df_lines_that_cross_rivers) %>%
  group_by(rivers_crossed) %>%
  summarize(commuters = sum(commuters)) %>%
  ungroup()


# df_commuter_rivers_summary %>%
#   summarize(commuters = sum(commuters))
# 184404 total commuters

df_commuter_rivers_summary %>%
  ggplot(aes(rivers_crossed, commuters)) +
    geom_col(color = "black") +
    geom_text(aes(y = commuters + 5000, label = scales::comma(commuters))) +
    scale_y_continuous(labels = scales::comma) +
    labs(title = "Commuter travel patterns",
         subtitle = "2017 U.S. Census LODES dataset",
         x = "Rivers crossed",
         y = "Number of commuters",
         caption = "@conor_tompkins") +
    theme_bw()

It is always reassuring when your analysis doesn’t stray to far from conventional wisdom. Very few Pittsburghers in the dataset cross two rivers to get to work, and none cross three.

Mapping commuter patterns

The next step is to put this data on a map, since it is obviously spatial. The goal is to calculate the percentage of each census tract’s “from” commuters that crossed zero, one, two, and 3 rivers.

This prepares the edge data to be used to make a chloropleth map:

df_lines_chloro <- df_edges %>%
  mutate(line_id = row_number()) %>%
  pivot_longer(c(from, to), names_to = "point_type", values_to = "edge_id")

df_lines_chloro
## # A tibble: 5,956 x 4
##    commuters line_id point_type edge_id
##        <dbl>   <int> <chr>        <int>
##  1       721       1 from             1
##  2       721       1 to               1
##  3       619       2 from             2
##  4       619       2 to               1
##  5       488       3 from             2
##  6       488       3 to               2
##  7       487       4 from             3
##  8       487       4 to               1
##  9       442       5 from             4
## 10       442       5 to               1
## # … with 5,946 more rows
# df_lines_chloro %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
# 184404 total commuters

The next few steps are largely just coercing the geometry to do what I want it to do. Interested parties can read the code.

df_line_types_chloro <- df_lines_chloro %>%
  pivot_wider(names_from = point_type, values_from = edge_id) %>%
  mutate(line_type = case_when(from == to ~ "point",
                               from != to ~ "linestring")) %>%
  pivot_longer(cols = c(from, to), names_to = "edge_type", values_to = "edge_id")

# df_line_types_chloro %>%
#    distinct(line_id, commuters) %>%
#    summarize(commuters = sum(commuters))
#184404 total commuters
df_linestrings_chloro <- df_line_types_chloro %>%
  filter(line_type == "linestring")

# df_linestrings_chloro %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
#167409 commuters that change tracts

df_linestrings_chloro_lookup <- df_linestrings_chloro %>%
  select(line_id, edge_type, edge_id) %>%
  pivot_wider(names_from = edge_type, values_from = edge_id)

df_points_chloro <- df_line_types %>%
  filter(line_type == "point")

# df_points_chloro %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
#16995 commuters that stay within a tract
df_linestrings_chloro <- df_linestrings_chloro %>%
  left_join(df_nodes, by = c("edge_id" = "id")) %>%
  left_join(allegheny_lines, by = c("name" = "GEOID")) %>%
  st_as_sf(coords = c("X", "Y")) %>%
  group_by(line_id, commuters) %>%
  summarise() %>% # union points into lines using our created lineid
  st_cast("LINESTRING") %>%
  st_set_crs(4326) %>%
  left_join(df_linestrings_chloro_lookup, by = c("line_id" = "line_id")) %>%
  left_join(df_nodes, by = c("from" = "id")) %>%
  left_join(allegheny_lines, by = c("name" = "GEOID"))

# df_linestrings_chloro %>%
#   ungroup() %>%
#   st_drop_geometry() %>%
#   summarize(commuters = sum(commuters))
#167409 commuters that change tracts

df_points_chloro <- df_points_chloro %>%
  left_join(df_nodes, by = c("edge_id" = "id")) %>%
  left_join(allegheny_lines, by = c("name" = "GEOID")) %>%
  st_as_sf(coords = c("X", "Y")) %>%
  group_by(line_id, name, commuters) %>%
  st_cast("POINT") %>%
  st_set_crs(4326)

# df_points_chloro %>%
#   ungroup() %>%
#   st_drop_geometry() %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
#16995 commuters that stay within a tract
df_linestrings_chloro_intersect <- df_linestrings_chloro %>%
  ungroup() %>%
  mutate(intersects_ohio = st_intersects(., rivers %>%
                                            filter(NAME == "Ohio River")) %>% as.logical(),
         intersects_allegheny = st_intersects(., rivers %>%
                                                filter(NAME == "Allegheny River")) %>% as.logical(),
         intersects_monongahela = st_intersects(., rivers %>%
                                                  filter(NAME == "Monongahela River")) %>% as.logical()) %>%
  st_set_geometry(NULL) %>%
  select(-c(from, to)) %>%
  rename(from = name)

# df_linestrings_chloro_intersect %>%
#   summarize(commuters = sum(commuters))
#167409 commuters that change tracts
df_linestrings_chloro_intersect <- df_linestrings_chloro_intersect %>%
  mutate_at(vars(contains("intersect")), ~case_when(is.na(.) ~ FALSE,
                           !is.na(.) ~ .)) %>%
  mutate(no_intersect = case_when(intersects_allegheny == FALSE & intersects_monongahela == FALSE & intersects_ohio == FALSE ~ TRUE,
                                  TRUE ~ FALSE)) %>%
  select(line_id, from, contains("intersect"), commuters) %>%
  pivot_longer(contains("intersect"), names_to = "river_intersected", values_to = "value")

# df_linestrings_chloro_intersect %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
#167409 commuters that change tracts
df_linestrings_chloro_intersect <- df_linestrings_chloro_intersect %>%
  mutate(commuters = case_when(value == FALSE ~ 0,
                               TRUE ~ commuters))

# df_linestrings_chloro_intersect %>%
#   distinct(line_id, commuters) %>%
#   summarize(commuters = sum(commuters))
#167409 commuters that change tracts
df_linestrings_chloro_intersect <- df_linestrings_chloro_intersect %>%
  filter(value == TRUE) %>%
  group_by(line_id, from, commuters) %>%
  summarize(count_rivers_intersected = sum(river_intersected != "no_intersect")) %>%
  ungroup()

# df_linestrings_chloro_intersect %>%
#   summarize(commuters = sum(commuters))
#167409 commuters that change tracts
df_points_chloro <- cbind(df_points_chloro, st_coordinates(st_centroid(df_points_chloro))) %>%
  st_drop_geometry() %>%
  rename(from = name) %>%
  distinct(from, line_id, commuters) %>%
  mutate(count_rivers_intersected = 0)


# df_points_chloro %>%
#    summarize(commuters = sum(commuters))
#16995 commuters that stay within a tract
df_combined <- bind_rows(df_linestrings_chloro_intersect, df_points_chloro)

# df_combined %>%
#     filter(is.na(from))
#
# df_combined %>%
#    summarize(commuters = sum(commuters))
#184404 total commuters
df_combined <- df_combined %>%
  arrange(from, desc(count_rivers_intersected), desc(commuters))

These are the final steps to create the chloropleth:

df_combined
## # A tibble: 2,978 x 4
##    line_id from        commuters count_rivers_intersected
##      <int> <chr>           <dbl>                    <dbl>
##  1     747 42003010300        63                        0
##  2    2194 42003020100        31                        2
##  3    1371 42003020100        42                        1
##  4    2290 42003020100        30                        1
##  5       1 42003020100       721                        0
##  6     630 42003020100        70                        0
##  7     730 42003020100        64                        0
##  8    1102 42003020100        49                        0
##  9    1629 42003020100        38                        0
## 10     349 42003020300       112                        0
## # … with 2,968 more rows

This counts the number of commuters per “from” tract and “count of rivers intersected”. Note that there are multiple rows per “from” tract.

df_chloro_map <- df_combined %>%
  ungroup() %>%
  group_by(from, count_rivers_intersected) %>%
  summarize(total_commuters = sum(commuters)) %>%
  ungroup()

df_chloro_map
## # A tibble: 722 x 3
##    from        count_rivers_intersected total_commuters
##    <chr>                          <dbl>           <dbl>
##  1 42003010300                        0              63
##  2 42003020100                        0             942
##  3 42003020100                        1              72
##  4 42003020100                        2              31
##  5 42003020300                        0             257
##  6 42003030500                        0             231
##  7 42003040200                        0             143
##  8 42003040400                        0             108
##  9 42003040500                        0              87
## 10 42003040600                        0              59
## # … with 712 more rows
# df_chloro_map %>%
#   filter(is.na(count_rivers_intersected))
#
# df_chloro_map %>%
#     summarize(commuters = sum(total_commuters))
#184404 total commuters

The next step is to calculate the percent of a “from” tract’s commuters that crossed a given number of rivers:

df_chloro_map <- df_chloro_map %>%
  group_by(from) %>%
  mutate(pct_of_commuters = total_commuters / sum(total_commuters)) %>%
  ungroup()

df_chloro_map
## # A tibble: 722 x 4
##    from        count_rivers_intersected total_commuters pct_of_commuters
##    <chr>                          <dbl>           <dbl>            <dbl>
##  1 42003010300                        0              63           1
##  2 42003020100                        0             942           0.901
##  3 42003020100                        1              72           0.0689
##  4 42003020100                        2              31           0.0297
##  5 42003020300                        0             257           1
##  6 42003030500                        0             231           1
##  7 42003040200                        0             143           1
##  8 42003040400                        0             108           1
##  9 42003040500                        0              87           1
## 10 42003040600                        0              59           1
## # … with 712 more rows
# df_chloro_map %>%
#   summarize(commuters = sum(total_commuters))
#184404 total commuters

Then I join df_chloro_map against the census tract geometry to get a complete list of all the tracts. I use complete to add rows for combinations of “from” tracts and count_rivers_intersected that did not appear in the data. Those added rows are given 0 for pct_of_commuters and total_commuters.

df_chloro_map <- df_chloro_map %>%
  right_join(allegheny_tracts %>% select(GEOID) %>% st_set_geometry(NULL), by = c("from" = "GEOID")) %>%
  complete(from, count_rivers_intersected = c(0, 1, 2)) %>%
  filter(!is.na(count_rivers_intersected)) %>% #exclude tracts brought in from the right_join
  replace_na(list(pct_of_commuters = 0, total_commuters = 0))

# df_chloro_map %>%
#   filter(is.na(count_rivers_intersected))
#
# df_chloro_map %>%
#   summarize(commuters = sum(total_commuters, na.rm = TRUE))
#184404 total commuters

The final step is to right join againt the census tract data to bring over the geometry.

df_chloro_map <- df_chloro_map %>%
  right_join(allegheny_tracts, by = c("from" = "GEOID"))

glimpse(df_chloro_map)
## Rows: 1,206
## Columns: 7
## $ from                     <chr> "42003010300", "42003010300", "42003010300",…
## $ count_rivers_intersected <dbl> 0, 1, 2, 0, 1, 2, 0, 1, 2, 0, 1, 2, 0, 1, 2,…
## $ total_commuters          <dbl> 63, 0, 0, 942, 72, 31, 257, 0, 0, 231, 0, 0,…
## $ pct_of_commuters         <dbl> 1.000, 0.000, 0.000, 0.901, 0.069, 0.030, 1.…
## $ NAME                     <chr> "Census Tract 103, Allegheny County, Pennsyl…
## $ total_pop                <dbl> 6600, 6600, 6600, 3629, 3629, 3629, 616, 616…
## $ geometry                 <MULTIPOLYGON [°]> MULTIPOLYGON (((-80 40, -80...,…
df_chloro_map %>%
  mutate(count_rivers_intersected = str_c("Rivers intersected:", count_rivers_intersected, sep = " ")) %>%
  ggplot() +
    geom_sf(aes(geometry = geometry,
                fill = pct_of_commuters),
            color = NA) +
    geom_sf(data = rivers,
            aes(color = NAME),
            size = 1,
            show.legend = FALSE) +
    facet_wrap(~count_rivers_intersected,
               nrow = 1) +
    scale_fill_viridis_c("% of commuters",
                         labels = scales::percent) +
    labs(title = "Commuter travel patterns",
         subtitle = "2017 U.S. Census LODES dataset",
         caption = "@conor_tompkins") +
    theme_void()

Errata

The previous version of the bar chart double counted the commuters. This is the old version:

df_commuter_rivers_summary <- df_commuter_rivers %>%
  bind_rows(df_points %>%
              mutate(value = FALSE)) %>%
  group_by(line_id) %>%
  summarize(rivers_crossed = sum(value),
            commuters = sum(commuters))

df_commuter_rivers_summary %>%
  group_by(rivers_crossed) %>%
  summarize(commuters = sum(commuters)) %>%
  ggplot(aes(rivers_crossed, commuters)) +
    geom_col() +
    scale_y_continuous(labels = scales::comma) +
    labs(title = "Commuter travel patterns",
         subtitle = "2017 U.S. Census LODES dataset",
         x = "Rivers crossed",
         y = "Number of commuters",
         caption = "@conor_tompkins") +
    theme_bw()

A similar but less impactful bug affected the chloropleth chart. For completeness, this is the old verison of that graph:

Related
