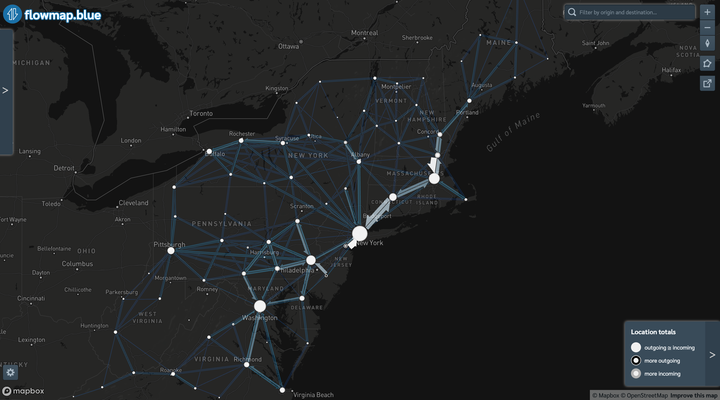

Mapping BosWash commuter patterns with Flowmap.blue

Code

This code is what I used to query the LODES data and aggregate it. First, load the required libraries.

library(tidyverse)
library(tidycensus)
library(janitor)
library(lehdr)
library(tigris)
library(sf)
library(ggraph)
library(tidygraph)

options(tigris_use_cache = TRUE,
        scipen = 999,
        digits = 4)

This code gets the main and aux LODES data for each state that I name in the states object. I then combine the data into lodes_combined and check that there are no duplicate origin-destination pairs. Be warned that these files are large (100-500MB each), and can take a bit to read into R, depending on your machine.

#get lodes
states <- c("pa", "wv", "va", "dc", "de",
            "md", "ny", "ri", "ct", "ma", "vt", "nh", "me")

lodes_od_main <- grab_lodes(state = states, year = 2017,
                            lodes_type = "od", job_type = "JT00",
                            segment = "S000", state_part = "main",
                            agg_geo = "county") %>%
  select(state, w_county, h_county, S000, year) %>%
  rename(commuters = S000)

lodes_od_aux <- grab_lodes(state = states, year = 2017,
                           lodes_type = "od", job_type = "JT00",
                           segment = "S000", state_part = "aux",
                           agg_geo = "county") %>%
  select(state, w_county, h_county, S000, year) %>%
  rename(commuters = S000)

lodes_combined <- bind_rows(lodes_od_main, lodes_od_aux)

This code pulls the geometry for the states from the TIGER shapefile API:

counties_combined <- tigris::counties(state = c("PA", "NY", "NJ", "MD",
                                                "WV", "DE", "VA",
                                                "DC", "MA", "CT", "VT",
                                                "RI", "NH", "ME"),
                                      cb = TRUE) %>%
  arrange(STATEFP) %>%
  left_join(fips_codes %>% distinct(state_code, state_name), by = c("STATEFP" = "state_code"))

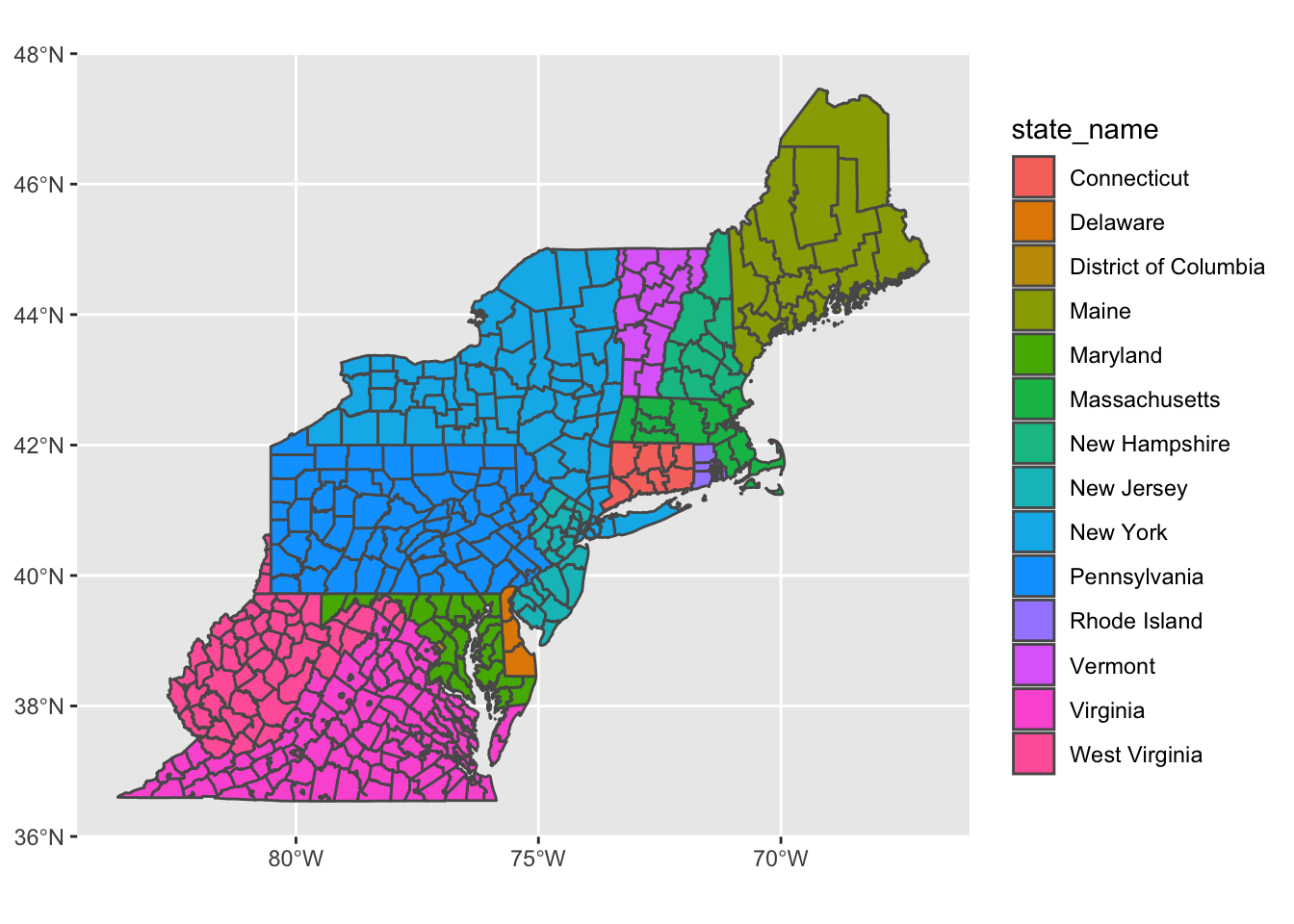

counties_combined %>%
  ggplot() +
  geom_sf(aes(fill = state_name))

The next step is to calculate the centroid of each county that will be used in the final map.

node_pos <- counties_combined %>%
  mutate(centroid = map(geometry, st_centroid),
         x = map_dbl(centroid, 1),
         y = map_dbl(centroid, 2)) %>%
  select(GEOID, NAME, x, y) %>%
  arrange(GEOID) %>%
  st_drop_geometry() %>%
  as_tibble() %>%
  select(-NAME) %>%
  rename(lon = x,
         lat = y) %>%
  mutate(id = row_number()) %>%
  select(id, GEOID, lat, lon)

Then I add the county and state name to the node positions so the name is intelligible.

node_pos <- node_pos %>%
  left_join(st_drop_geometry(counties_combined), by = c("GEOID" = "GEOID")) %>%
  mutate(county_name = str_c(NAME, "County", sep = " "),
         name = str_c(county_name, state_name, sep = ", "))

node_pos <- node_pos %>%
  select(id, name, lat, lon, GEOID)

## Rows: 433
## Columns: 5
## $ id    <dbl> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, …
## $ name  <chr> "Fairfield County, Connecticut", "Hartford County, Connecticut"…
## $ lat   <dbl> 41.27, 41.81, 41.79, 41.46, 41.41, 41.49, 41.86, 41.83, 39.09, …
## $ lon   <dbl> -73.39, -72.73, -73.25, -72.54, -72.93, -72.10, -72.34, -71.99,…
## $ GEOID <chr> "09001", "09003", "09005", "09007", "09009", "09011", "09013", …

This processes the LODES origin-destination data and creates the node-edge network graph object that will be fed into the Flowmap.blue service.

network_graph <- lodes_combined %>%
  semi_join(counties_combined, by = c("w_county" = "GEOID")) %>%
  semi_join(counties_combined, by = c("h_county" = "GEOID")) %>%
  select(h_county, w_county, commuters) %>%
  as_tbl_graph(directed = TRUE) %>%
  activate(edges) %>%
  filter(commuters >= 500,
         #!edge_is_loop()
  ) %>%
  activate(nodes) %>%
  arrange(name)

nodes <- network_graph %>%
  activate(nodes) %>%
  as_tibble()

## Rows: 433
## Columns: 1
## $ name <chr> "09001", "09003", "09005", "09007", "09009", "09011", "09013", "…

edges <- network_graph %>%
  activate(edges) %>%
  as_tibble() %>%
  rename(origin = from,
         dest = to,
         count = commuters) %>%
  arrange(desc(count))

## Rows: 3,293
## Columns: 3
## $ origin <dbl> 128, 161, 121, 149, 61, 121, 138, 210, 112, 2, 127, 125, 138, …
## $ dest   <dbl> 128, 161, 128, 149, 61, 121, 128, 210, 112, 2, 127, 125, 138, …
## $ count  <dbl> 556679, 479006, 473088, 463254, 448943, 397538, 383421, 364463…

Finally, this code checks that the node position data matches up with the nodes from the network object. If these checks fail, the origin-destination pairs will be mapped to the wrong geographic coordinates.

#check that nodes match up
all(node_pos$GEOID == nodes$name)

identical(node_pos$GEOID, nodes$name)

length(node_pos$GEOID) == length(nodes$name)

This code creates the metadata that Flowmap.blue requires and loads the data into Google Sheets.

my_properties <- c(
  "title"="BosWash regional US commuter flow",
  "description"="Miniumum 500 commuters per origin-destination pair",
  "source.name"="2017 US Census LODES",
  "source.url"="https://lehd.ces.census.gov/data/",
  "createdBy.name"="Conor Tompkins",
  "createdBy.url"="https://ctompkins.netlify.app/",
  "mapbox.mapStyle"=NA,
  "flows.sheets" = "flows",
  "colors.scheme"="interpolateViridis",
  "colors.darkMode"="yes",
  "animate.flows"="no",
  "clustering"="yes"
)

properties <- tibble(property=names(my_properties)) %>%
  mutate(value=my_properties[property])

drive_trash("lodes_flowmapblue")

ss <- gs4_create("lodes_flowmapblue", sheets = list(properties = properties,
                                                    locations = node_pos,
                                                    flows = edges))

The final step is to allow the Google Sheet to be read by anyone with the link, and copy the Sheet’s link to Flowmap.blue

knitr::include_graphics("flowmapblue_sheet_screen.png")

References

• https://doodles.mountainmath.ca/blog/2020/01/06/flow-maps/
• https://jamgreen.github.io/lehdr/articles/getting_started.html
